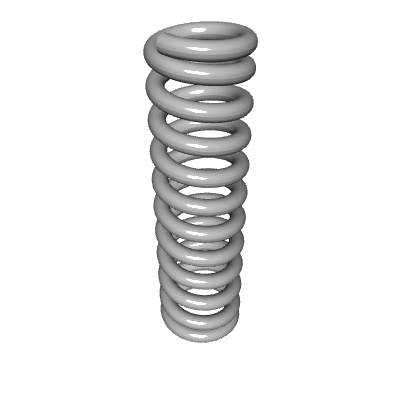

main view

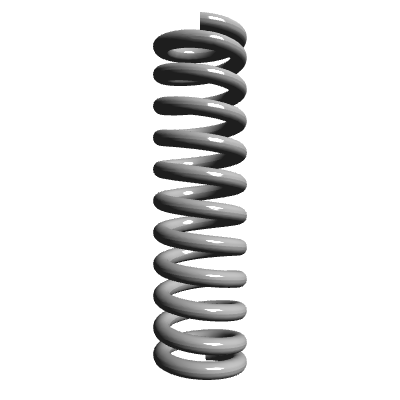

side view

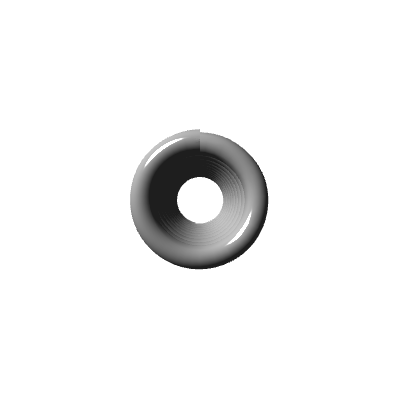

top view
3D
2D

Specifications



Download Spec Sheet

Imperial/Inches Metric
Physical Dimension

mm cm

Load

N kg gm




LHL 1000B 06

Cost
£0.00
£0.00
Price
£0.00
Weight
0.14 lb.
Direction of Wind
Factory Option
Ends
Squared and Ground
Finish
Purple Powder Coat
Material
Oil Tempered Chrome Silicon
Total Coils
9.160
Product Series
Published Stock Code
LHL1000B06
Product Type
Compression Spring
Product Category
Stock
Revision
NR
Rate (N/mm)
50.44
Rate (kg/cm)
51.43
Rate (lb/in)
288.00
Rate (gm/mm)
5143.10
Weight per Item (lb)
0.14
Material Specification
ASTM A401
Free Length (cm)
6.350
Free Length (inch)
2.500
Free Length (mm)
63.500
Free Length - Build Spec (in)
2.50
Free Length Tolerance (cm)
0.22
Free Length Tolerance (in)
0.09
Free Length Tolerance (mm)
2.24
Free Length Tolerance - Build Spec (in)
0.09
Hole Diameter (cm)
2.54
Hole Diameter (inch)
1.00
Hole Diameter (mm)
25.40
Inside Diameter (cm)
1.58
Inside Diameter (in)
0.62
Inside Diameter (mm)
15.77
Inside Diameter - Build Spec (in)
0.62
Outside Diameter (cm)
2.400
Outside Diameter (in)
0.95
Outside Diameter (mm)
24.00
Outside Diameter - Build Spec (in)
0.95
Rate (gm/cm)
51431.00
Rate (kg/mm)
5.14
Rate (N/cm)
504.38
Rate - Build Spec (lb/in)
288.00
Rate Tolerance (gm/cm)
5143.10
Rate Tolerance (gm/mm)
514.31
Rate Tolerance (kg/cm)
5.14
Rate Tolerance (kg/mm)
0.51
Rate Tolerance (lb/in)
28.80
Rate Tolerance (N/cm)
50.44
Rate Tolerance (N/mm)
5.04
Rate Tolerance - Build Spec (lb/in)
28.80
Rod Diameter (cm)
1.27
Rod Diameter (inch)
0.50
Rod Diameter (mm)
12.70
Solid Height (cm)
3.81
Solid Height (inch)
1.50
Solid Height (mm)
38.10
Total Coils - Build Spec
9.16
Wire Diameter (cm)
0.41
Wire Diameter (inch)
0.16
Wire Diameter (mm)
4.11
Wire Diameter - Build Spec (in)
0.16
Hole Diameter - Build Spec. (in)
1.00
Rod Diameter - Build Spec. (in)
0.50
Rod Diameter Tolerance - Build Spec. (in)
MIN
Rod Diameter Tolerance (in)
MIN
Rod Diameter Tolerance (mm)
MIN
Rod Diameter Tolerance (cm)
MIN
Solid Height - Build Spec. (in)
1.50
Material Short Description
OTCS
Load at Solid Height (lb)
288.00
Load at Solid Height - Build Spec. (lb)
288.00
Load at Solid Height (N)
1281.09
Load at Solid Height (kg)
130.64
Load at Solid Height (gm)
130637.00
Active Coils - Build Spec.
7.16
Active Coils
7.16
Active Coils Tolerance - Build Spec.
Reference
Active Coils Tolerance
Reference
Product Series
HEFTY™ Die Spring
Inside Diameter Tolerance (cm)
Reference
Inside Diameter Tolerance (in)
Reference
Inside Diameter Tolerance (mm)
Reference
color
Purple
Inside Diameter Tolerance - Build Spec (in)
Reference
Outside Diameter Tolerance (cm)
Reference
Outside Diameter Tolerance (in)
Reference
Outside Diameter Tolerance (mm)
Reference
Outside Diameter Tolerance - Build Spec (in)
Reference
Product GUID
808A69E9-F168-E311-B45C-F2F64232B487
Outside Diameter Upper Tolerance (in)
0.00
Outside Diameter Lower Tolerance (in)
0.00
Outside Diameter Upper Tolerance (mm)
0.04
Outside Diameter Lower Tolerance (mm)
0.04

Die Spring: OD 24 mm, FL 63.5 mm, Oil Tempered Chrome Silicon

HEFTY™ Die Spring Compression Springs

Heavy Duty Compression Springs

Lee Spring LHL 1000B 06 is a heavy-duty die compression spring from the HEFTY™ Die Spring series, specifically engineered for demanding industrial applications requiring durabiliy and substantial load capacity. This spring features an 24-mm outside diameter (0.945 inch) with a 25.4-mm hole diameter (1 inch) and extends to a free length of 63.5 mm (2.5 inch), making it ideal for stamping and die applications. Made from Oil Tempered Chrome Silicon with a 4.11-mm wire diameter (0.162 inch), the spring delivers a spring rate of 50.438 N/mm (288 lb/inch) through its 7.16 active coils out of 9.16 total coils, with Factory Option wind for predictable deflection behavior. The spring compresses to a solid height of 38.1 mm (1.5 inch) while supporting a maximum load of 1281.09 N (288 lb) at full compression. The spring has Squared and Ground ends and a Purple Powder Coat finish for optimal die spring performance.

About the HEFTY™ Die Spring Series

HEFTY™ Die Springs offer you the economy of round wire and the durability of chrome silicon or music wire ideally suited for any high stress, heavy load application. Great for many applications such as clutches, brakes, farm machinery and aircraft mechanisms. Available in five different types with different load ratings to fit standard diameters.

HEFTY™ Die Spring Compression Springs have useful applications in various industries, including:

  • Medical devices
  • Firearms
  • Pharmaceutical delivery devices
  • Lighting and electrical control
  • Petro-chemical processes
  • Communication devices
  • Aerospace
  • Testing and measurement equipment
  • Marine applications
  • Automotive
  • Locks and security devices
  • Precision Instruments
  • Hardware

...and many more applications

417281
Product Compression OD 0.945 in, Length 2.5 in, Oil Tempered Chrome Silicon
Product Compression OD 24 mm, Length 63.5 mm, Oil Tempered Chrome Silicon
Part Number LHL 1000B 06
Series HEFTY™ Die Spring
Outside Diameter (inch) 0.945
Outside Diameter (cm) 2.4
Outside Diameter (mm) 24
Hole Diameter (inch) 1
Hole Diameter (cm) 2.54
Hole Diameter (mm) 25.4
Rod Diameter (inch) 0.5
Rod Diameter (cm) 1.27
Rod Diameter (mm) 12.7
Free Length (inch) 2.5
Free Length (cm) 6.35
Free Length (mm) 63.5
Rate (gm/mm) 5143.1
Rate (kg/cm) 51.431
Rate (kg/mm) 5.1431
Rate (lb/inch) 288
Rate (gm/cm) 51431
Rate (N/cm) 504.38
Rate (N/mm) 50.438
Solid Height (inch) 1.5
Solid Height (cm) 3.81
Solid Height (mm) 38.1
Wire Diameter (inch) 0.162
Wire Diameter (cm) 0.411
Wire Diameter (mm) 4.11
Material Oil Tempered Chrome Silicon
Load at Solid Height (gm) 130637
Load at Solid Height (kg) 130.637
Load at Solid Height (lb) 288
Load at Solid Height (N) 1281.09
Ends Squared and Ground
Active Coils 7.16
Direction of Wind Factory Option
Finish Purple Powder Coat
Total Coils 9.16
0.162 0.945 0.001 0.001 1 0.5 2.5 0.088 9.16 288 28.8 1.5 288 0.162 2.5 0.945 4.11 24 0.04 25.4 12.7 63.5 2.235 50.438 38.1 1281.09

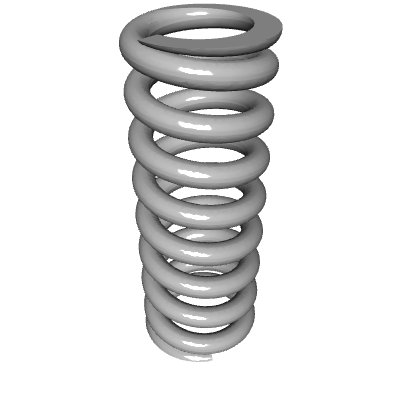

Default View

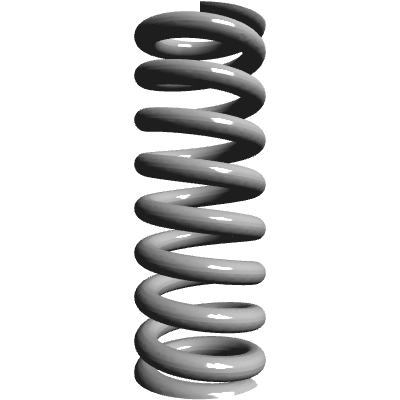

Side view

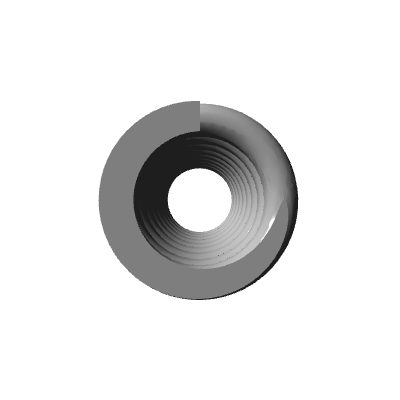

Top view
Quantity Price Price
1 - 19 £6.8500 €8.1500
20 - 49 £5.9700 €7.1000
50 - 99 £5.4100 €6.4379
100 - 199 £4.0181 €4.7815
200 - 299 £3.2705 €3.8919
300 - 399 £2.9605 €3.5230
400 - 499 £2.6880 €3.1987
500 - 599 £2.4524 €2.9184
600 - 699 £2.2600 €2.6894
700 - 799 £2.1044 €2.5042
800 - 899 £1.9879 €2.3656
900 - 999 £1.9110 €2.2741
1000 £1.8722 €2.2279
